PG-AMM High Precision Instruments
Bargraph Level Meter
Modes:
VU/SPPM, QPPM/SPPM +9dBfs, QPPM/SPPM 0dBfs, K-20/SPPM (Wide-range Music), K-14/SPPM ('Pop' Music), K-12/SPPM (Broadcast), K-20 ITU/SPPM (Wide-range Music), K-14 ITU/SPPM ('Pop' Music), K-12 ITU/SPPM (Broadcast).
Display Range: -60dB, -96dB, -144dB. Decay Time: Fast, Normal, Slow.
Stereo PPM Meter
![...](data/_uploaded/image/SingleMeter/PPM.png)
Scaleable, horizontal and vertical orientation.
5.1 PPM Meter Surround
![...](data/_uploaded/image/SingleMeter/PPM_5_1.png)
Scaleable, horizontal and vertical orientation. Channel order can be changed.
8 channel PPM Meter
![...](data/_uploaded/image/SingleMeter/PPM-8.png)
Scaleable, horizontal and vertical orientation.
16 channel PPM Meter
![...](data/_uploaded/image/SingleMeter/PPM-16.png)
Scaleable, horizontal and vertical orientation.
8 Stereo channels PPM Meter
![...](data/_uploaded/image/SingleMeter/PPM-Multi-Stereo.png)
Scaleable, horizontal and vertical orientation.
Loudness Meter
All instruments with EBU R128 compliance.
Loudness Bargraph
![...](data/_uploaded/image/SingleMeter/LdnMeter.png)
Scaleable, horizontal and vertical orientation. Modes: 0.4 sec. EBU-M, 3.0 sec. EBU-S.
Scale types: -96dB LUFS, -23dB LUFS, -24dB LUFS

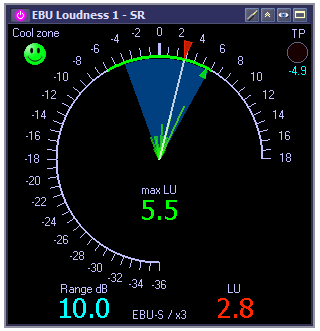

EBU Loudness
![...](data/_uploaded/image/SingleMeter/EBU-Loudness.png)
Scaleable. Modes: 0.4 sec. EBU-M, 3.0 sec. EBU-S.
Scale Range: 48dB, 60dB, EBU +9dB, EBU +18.
EBU Integrated
![...](data/_uploaded/image/SingleMeter/EBU-Integrated.png)
Start/Stop function to measure long time loudness.
Frequency Analysis
High quality to check the frequency spectrum of your material.
Fast Fourier Transform
![...](data/_uploaded/image/SingleMeter/FFT.png)
Scaleable, 4 input modes, 7 windowing functions, scale range: -48db -60dB, -96dB, -144dB
Display modes: logarithmic, white noise flat, linear, white noise flat, logarithmic, pink noise flat.
Real Time Analyzer
![...](data/_uploaded/image/SingleMeter/RTA.png)
Scaleable, Filter Q: 18db/O, 24db/O, Scale Range: 48dB, 60dB, EBU +9dB, EBU +18.
Threshold: -72dB, -96dB, -144dB
Spectral View
![...](data/_uploaded/image/SingleMeter/Spectral.png)
Auto start/stop function, vertical zoom: x1, x2. History time: 20, 10, 5 sec.
Range: -48db -60dB, -96dB, -144dB. Four input modes, 7 windowing functions.
Display modes: logarithmic, white noise flat, logarithmic, pink noise flat.
Correlation
Standard Correlation
![...](data/_uploaded/image/SingleMeter/Correlation.png)
Scaleable, horizontal and vertical orientation.
Multi Frequency Correlation
![...](data/_uploaded/image/SingleMeter/MFC.png)
Scaleable, 4 input modes, scale range: -48db -60dB, -96dB, -144dB, Filter Q: 18db/O, 24db/O
Scale Range: 48dB, 60dB, EBU +9dB, EBU +18.
Spectral View
![...](data/_uploaded/image/SingleMeter/GonioMeter.png)
Auto start/stop function, vertical zoom: x1, x2. History time: 20, 10, 5 sec.
Range: -48db -60dB, -96dB, -144dB. Four input modes, 7 windowing functions.
Display modes: logarithmic, white noise flat, logarithmic, pink noise flat.
Special Tools
Stereo Locator
![...](data/_uploaded/image/SingleMeter/Locator.png)
Scaleable, shows the position of the signal in 5.0 space. Ball size represents the level of the SUB channel. The color of the lines that connect the speaker positions show the correlation between the signal sources.
LEQ Numeric
![...](data/_uploaded/image/SingleMeter/LEQ-Num.png)
Start/Stop function to measure long time LEQ.
Level/Loudness logging
PG-AMM offers a solution to log level and loudness up to 5.1 channels (depends on version) 7 days/24 hours.
The logger establishes a TCPIP connection to send the data to the Pinguin Loudness server. The saved data can then be inspected with the server or a stand alone viewer. Booth logger have the same features, the smaller just takes less space on your screen.
Logger Big
![...](data/_uploaded/image/SingleMeter/LoggerBig.png)
Logger Small
![...](data/_uploaded/image/SingleMeter/Logger.png)
Loudness Server
![...](/data/_uploaded/image/SingleMeter/LdnServer.png)
Loudness Log Viewer
![...](/data/_uploaded/image/SingleMeter/LogViewer.png)
